Examples

This section provides practical examples of TBsim usage across different scenarios and applications.

Basic TB Simulation

The simplest way to run a TB simulation:

from tbsim import TB
import starsim as ss

# Create and run a basic TB simulation
sim = ss.Sim(diseases=TB(), verbose=0)
sim.run()

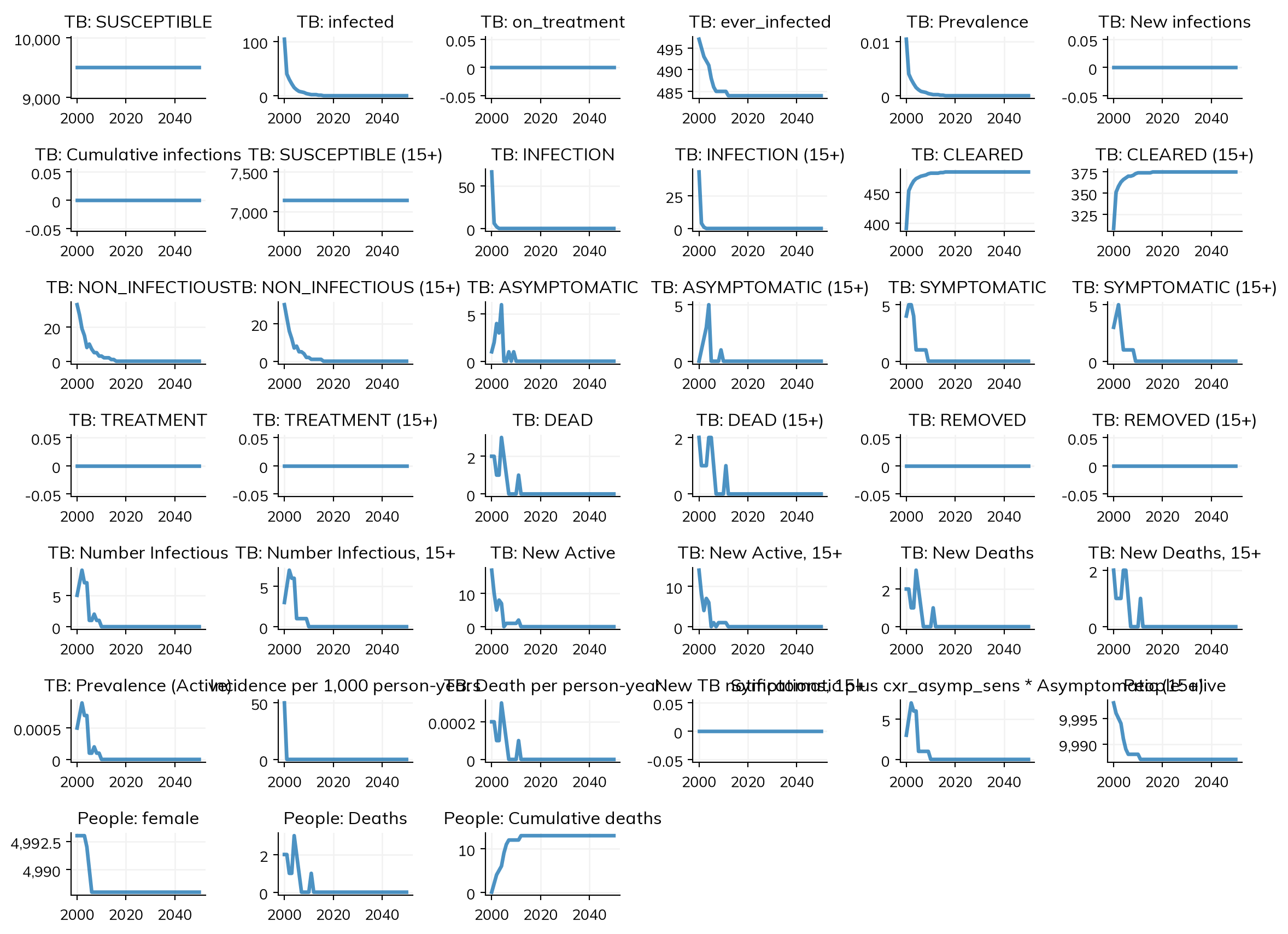

# Plot results
sim.plot()

Figure(1152x864)

TB with Interventions

Adding BCG vaccination and treatment interventions:

import tbsim
from tbsim import TB
import starsim as ss

# Add TB module and interventions
tb = TB()
bcg = tbsim.BCGRoutine(pars=dict(
    coverage=ss.bernoulli(p=0.8),
    start=ss.date('1980-01-01'),
    stop=ss.date('2030-12-31'),
    age_range=[0, 5],
))
tpt = tbsim.TPTSimple(pars=dict(
    start=ss.date('1990-01-01'),
    stop=ss.date('2030-12-31'),
))

sim = ss.Sim(
    diseases=tb,
    interventions=[bcg, tpt],
    pars=dict(start=ss.date('1975-01-01'), stop=ss.date('2030-12-31')),
    verbose=0,
)
sim.run()

TB-HIV Comorbidity

Modeling TB and HIV together:

from tbsim.comorbidities.hiv import HIV
from tbsim import TB
import starsim as ss

# Add both modules
tb = TB()
hiv = HIV()

sim = ss.Sim(diseases=[tb, hiv], verbose=0)
sim.run()

Household Networks

Using household-based social networks:

import starsim as ss
import sciris as sc
from tbsim import TB

# Synthetic DHS-style household data (hh_id + comma-separated ages per household)
dhs_data = sc.dataframe(
    hh_id=[0, 1, 2],
    ages=['72, 17, 30', '37', '13, 55, 36'],
)

# Create household network and TB (static households; no Pregnancy module required)
households = ss.library.HouseholdNet(dhs_data=dhs_data, dynamic=False)
tb = TB()

sim = ss.Sim(networks=households, diseases=tb, verbose=0)
sim.run()

Advanced Analysis

Using the built-in analyzers:

from tbsim import TB
from tbsim.analyzers import DwellTime
import starsim as ss

# Run simulation with dwell time analyzer
sim = ss.Sim(diseases=[TB()], analyzers=DwellTime(scenario_name="Baseline"))
sim.run()

# Create plots from the analyzer
sim.analyzers[0].plot('histogram')
sim.analyzers[0].plot('kaplan_meier')
sim.analyzers[0].plot('network')

Parameter Sweeps

Running multiple parameter combinations:

from tbsim import TB
import starsim as ss
import numpy as np

# Define parameter ranges
transmission_rates = np.linspace(0.1, 0.5, 5)

results = []
for rate in transmission_rates:
    sim = ss.Sim(diseases=TB(pars={'beta': ss.peryear(rate)}), verbose=0)
    sim.run()
    results.append(sim.results)

Script Examples

The tbsim_examples/ directory contains ready-to-run examples:

• Basic TB: run_tb.py - Simple TB simulation
• Malnutrition: run_malnutrition.py - TB and malnutrition comorbidity
• TB-HIV: run_tbhiv.py - TB-HIV coinfection model
• Interventions: run_tb_interventions.py - BCG, TPT, and beta scenarios
• Health Seeking: run_health_seeking.py - Health-seeking behaviour with the LSHTM TB model

For more detailed tutorials and step-by-step guides, see the tutorials section.
